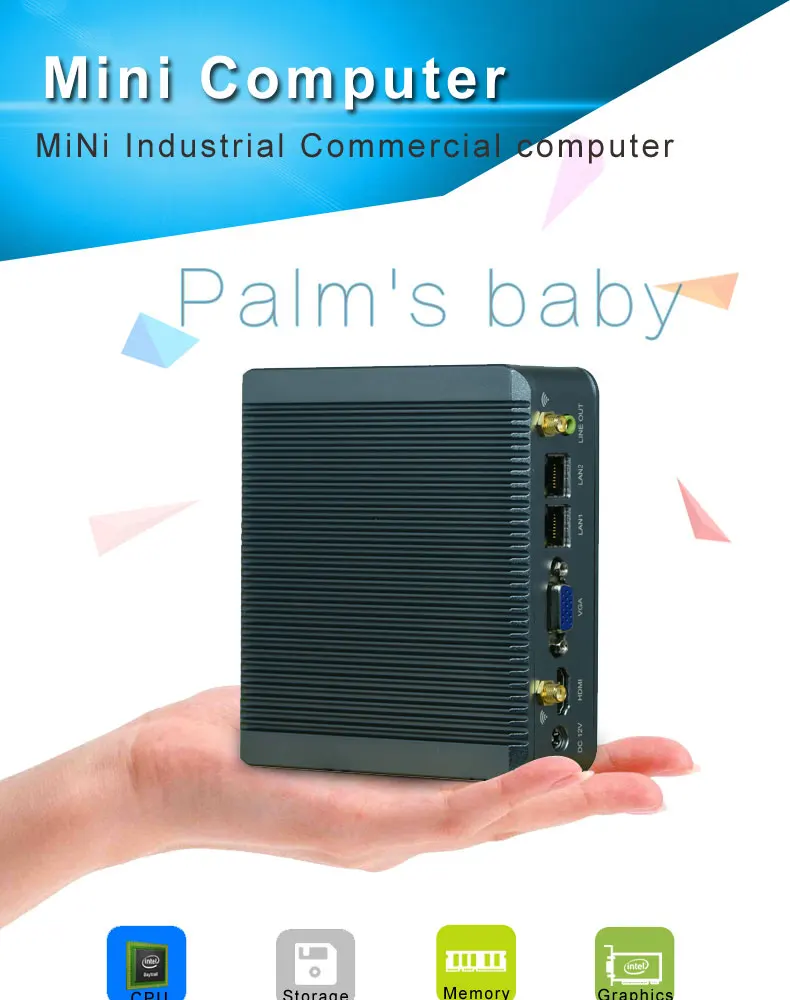

N2929SZ New Intel J1900 Quad Core Ultra Low Power Desktop Computer 2 Ethernet LAN Fanless Ubuntu Mini PC 12V

FOB Reference Price:Get Latest Price
US $79-179 / Pieces | 1 Piece/Pieces (Min. Order)
Memory Capacity:
8GB
Customization:
Customized logo (Min. Order: 200 Pieces)
Customized packaging (Min. Order: 200 Pieces)

More

Graphic customization (Min. Order: 200 Pieces) Less
Report Suspicious Activity
Overview
Quick Details
Products Status:
Stock
Type:
Desktop
Screen Size:
No Monitor
Processor Brand:
Intel
Graphics Card Type:
Integrated Card
Widescreen:
Yes
Optical Drive Type:
No CD-ROM
Processor Main Frequency:
2.0GHz
Brand Name:
YanyuGongkong
Model Number:
N2929SZ
Place of Origin:
Guangdong, China (Mainland)
Processor:
Intel Celeron J1900 Quad Core 2.0GHz
USB:
3* USB2.0, 1* USB3.0
LAN:
2* RJ45 Gigabit Ethernet Interface
Serial Port:
1* CI SCO Standard Serial Port
WiFi:
1*Mini-PCIE, support WiFi/3G module
Display:
1*VGA, 1* HD MI
Audio:
1*MIC, 1*Line-out
Name:
Thin Client Mini PC 12V
Expansion:
1* SIM Card Slot
Dimensions(mm):
134mm*126mm*41mm (L*W*H)
Supply Ability
Supply Ability:
5000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details

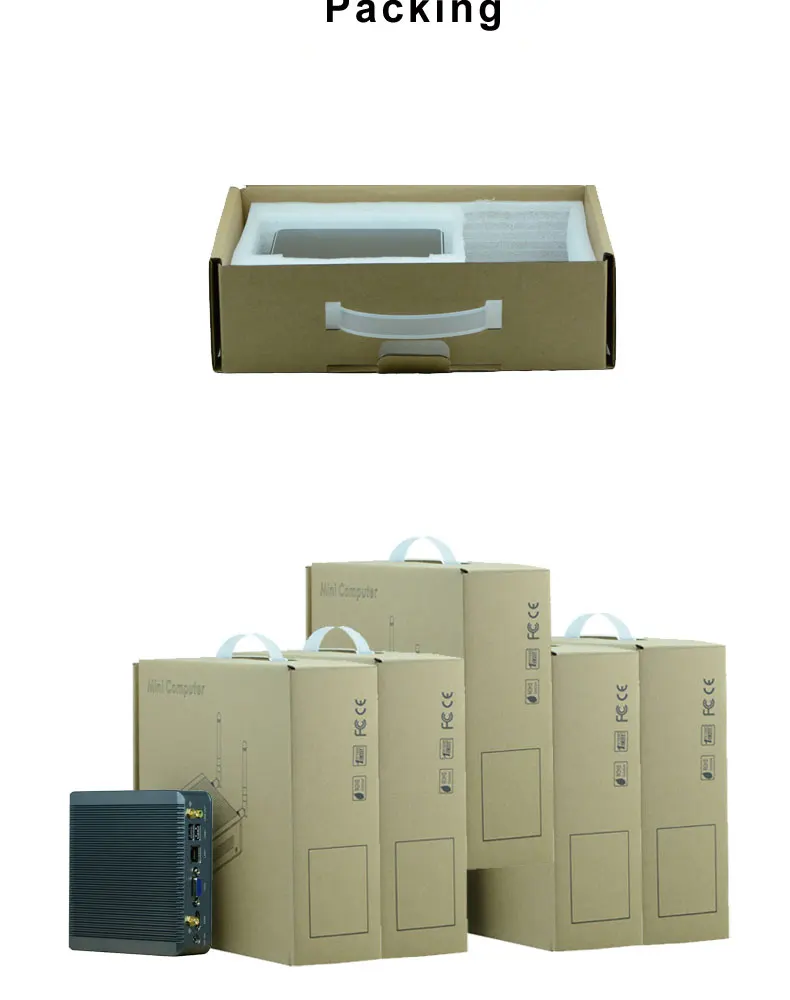

Standard Carton Box
Port
Shenzhen
Lead Time :
Quantity(Pieces) 1 - 50 >50
Est. Time(day) 3 To be negotiated

Intel IoT Solution Alliance Affiliate Member
Intel Intelligent System Alliance Member
ISO9001:2008 Quality Management Certified

ISO14001:2004 Environmental Management Certified

National High Tech Enterprice With Procssional and Experienced R&D Team



N2929SZ New Intel J1900 Quad Core Ultra Low Power Desktop Computer 2 Ethernet Fanless Ubuntu Mini PC 12V



Features
Fanless cooling structure
Full aluminum alloy, compact structure, flexible installation
1xVGA, 1xHDMI, support synchronous/asynchronous display
Provide 1*SIM card slot expansion, support WiFi / 3G module
2 Gigabit LAN port, support Wake On LAN

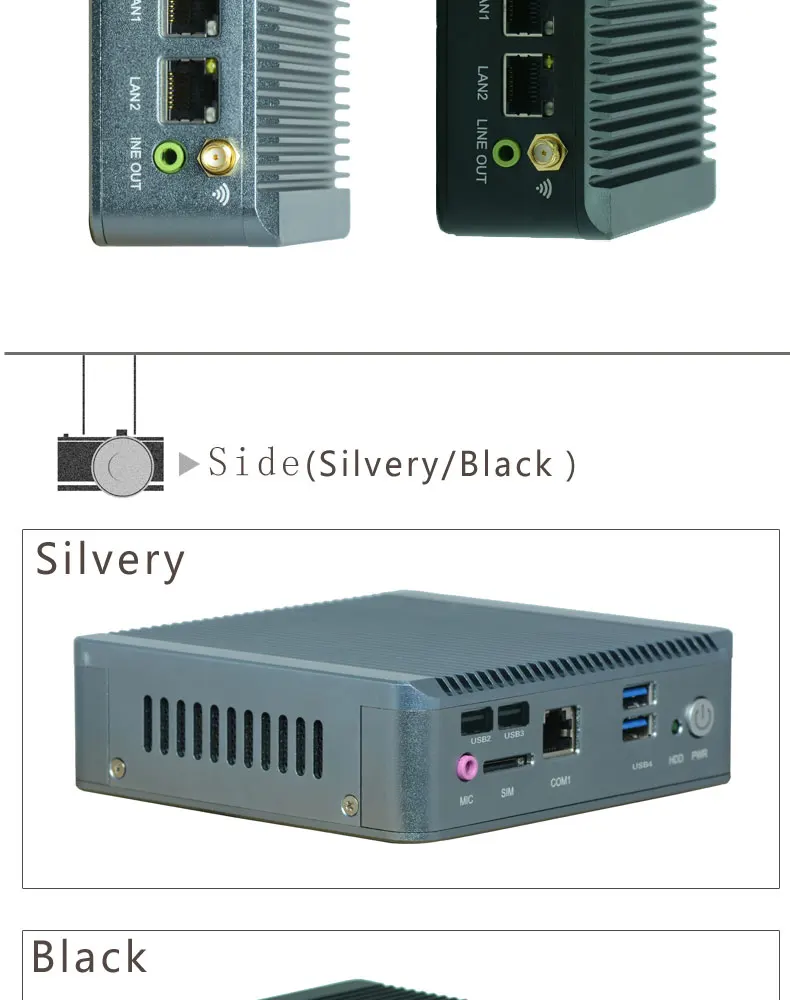

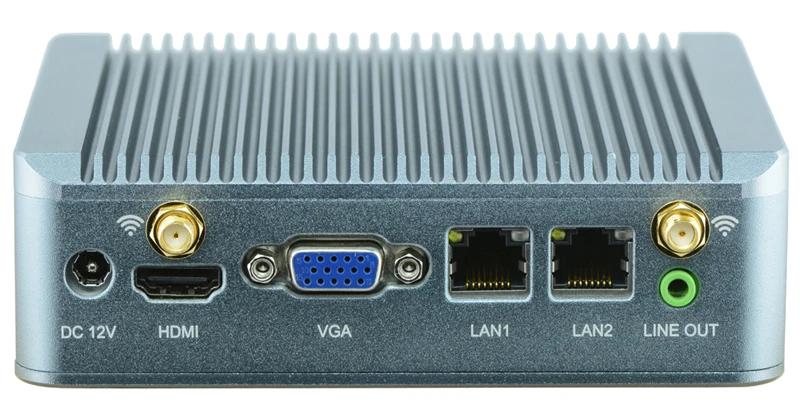

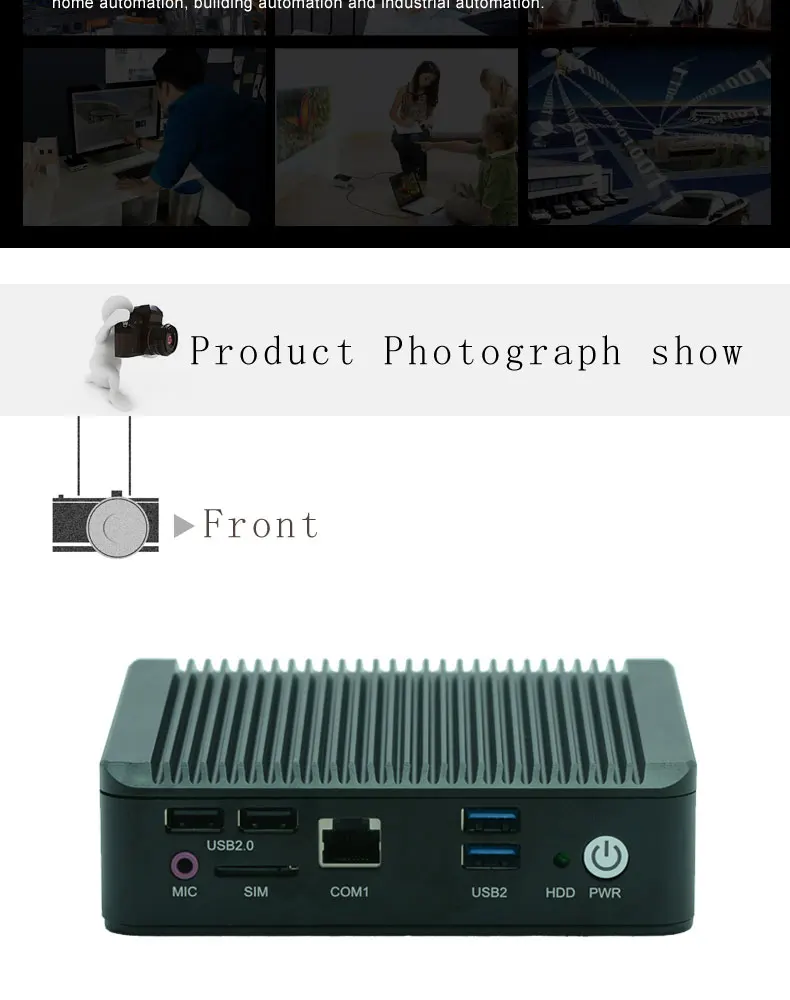

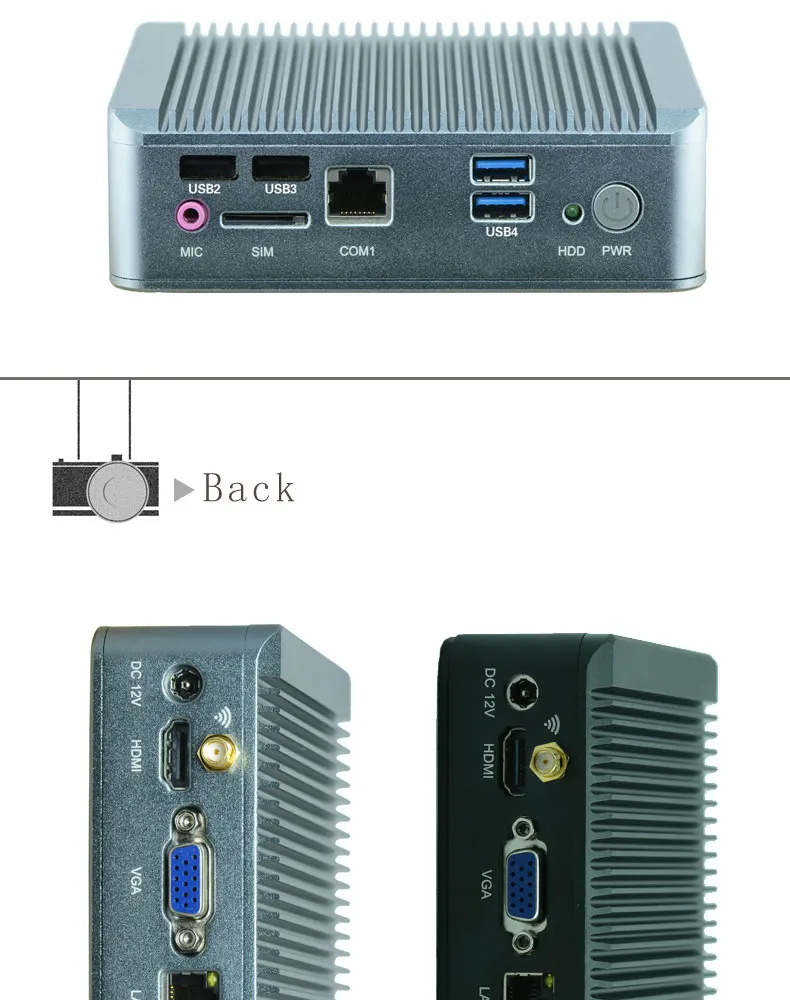

Rich IO: 1*DC_Jack, 4*USB, 1*HDMI, 1*VGA, 1*Audio, 2*LAN



Specification
Model No.N2929SZ

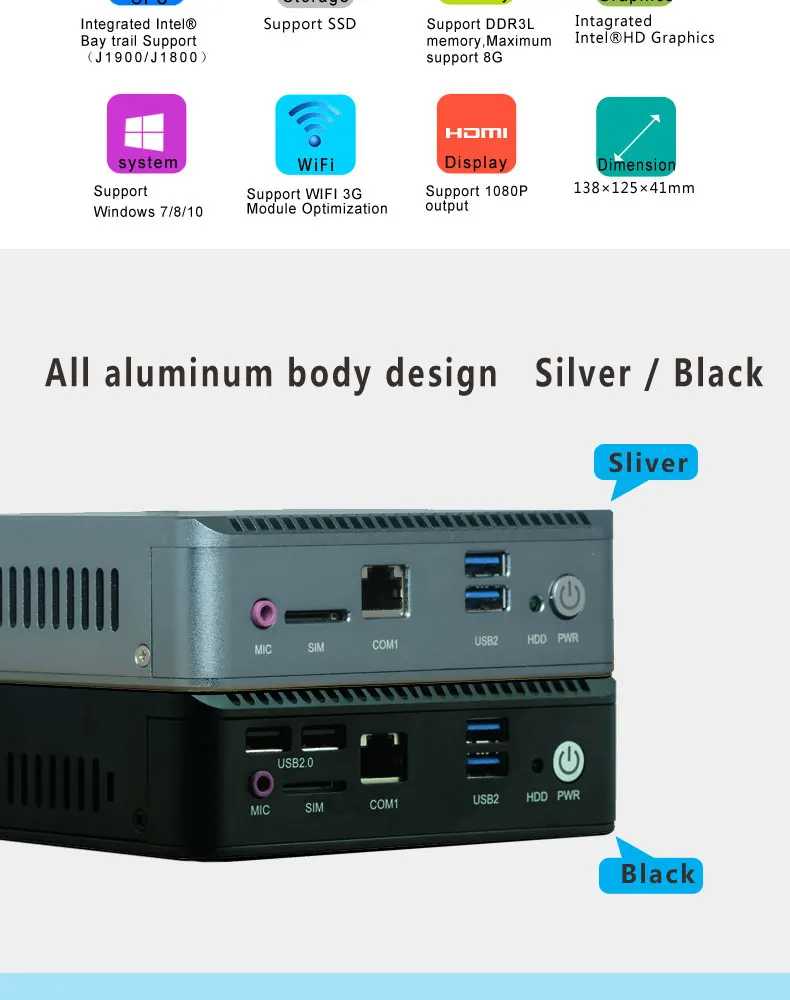

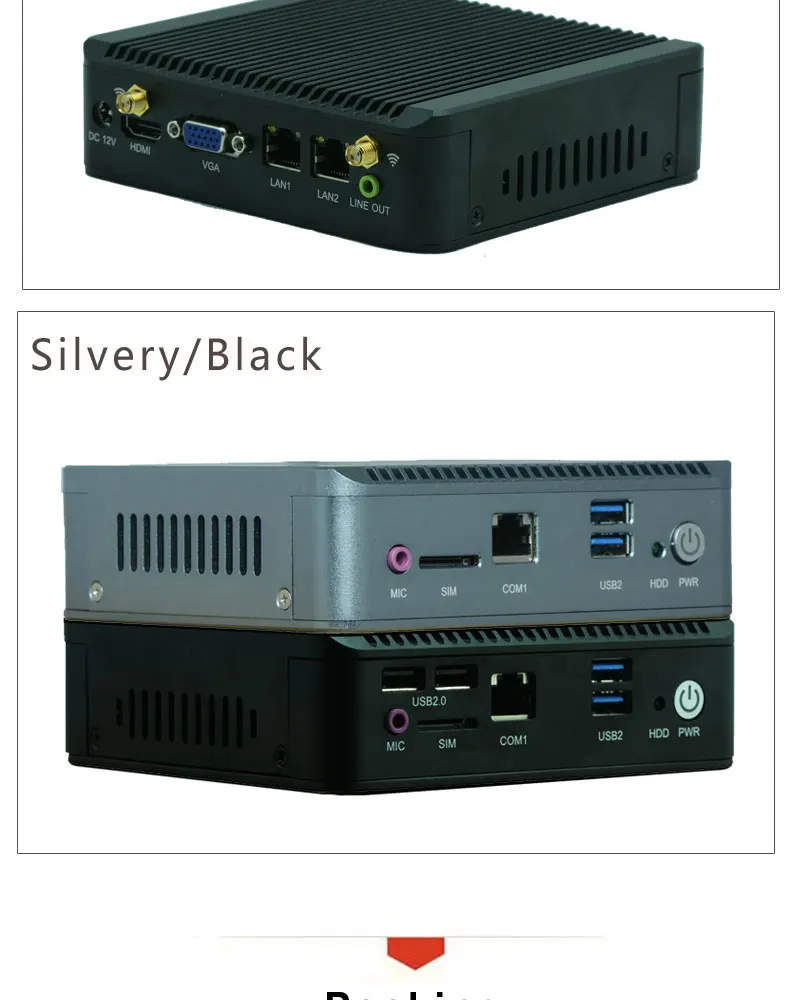

ChassisColorIron gray
Dimension134mm*126mm*41mm(L*W*H)
StructureFull aluminum fanless cooling structure
MaterialFull aluminu alloy

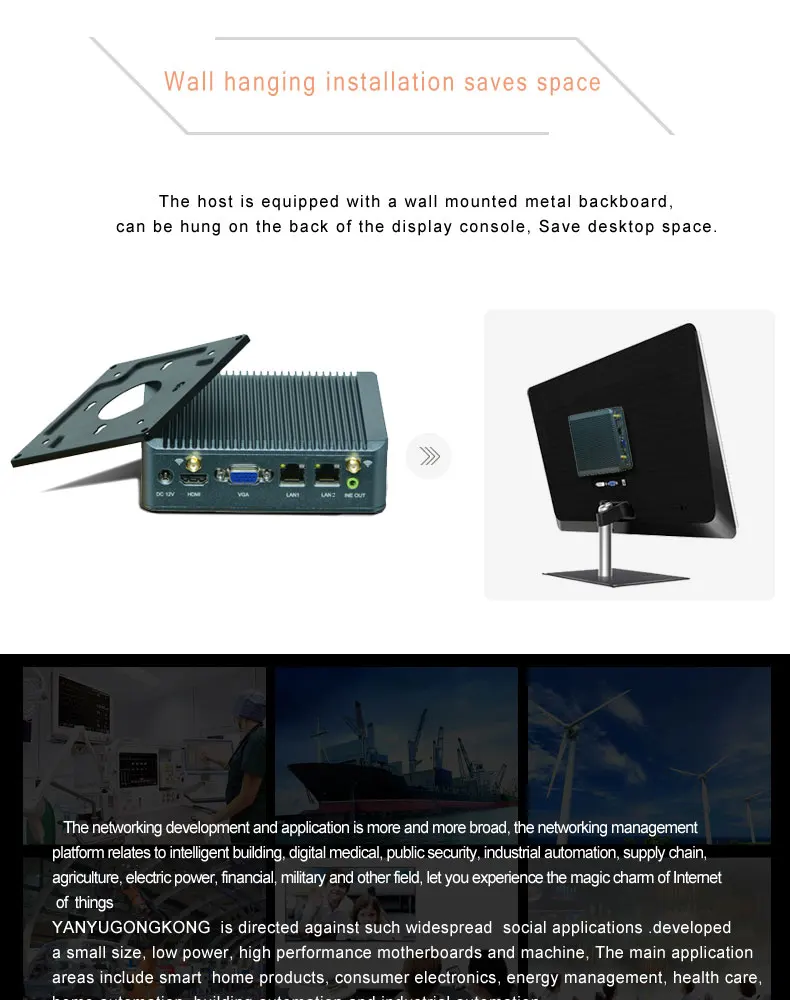

InstallationDesktop type or mounted installation
MotherboardModelSTX-N29_19
ProcessorIntegrated Intel® Celeron J1900 quad core 2.0GHz processor
ChipsetIntel® Bay trail SOC chipset platform
GraphicsHD GraphicsIntegrated Intel® HD Graphics, support VGA, HDMI synchronous/asynchronous display
StorageMemory1* SODIMM 1600/1333MHz DDR3L/1.35V memory, max up to 8GB
SATAN/A
CFN/A
SSDSupport 1*MSATA SSD expansion
AudioSound CardIntegrated ALC662 6 channels Hi-Fi audio controller, support MIC, Line_out
NetworkEthernet2*RTL8111F Gigabit LAN, support Wake On LAN /PXE
WiFiProvide 1xMini-PCIE slot, support WiFi / 3G module
I/O PortSerial Port1*CISCO standard serial port
USB3* USB2.0, 1*USB3.0
Power Switch1* Power switch
LED indicator1*HDD LED
Expansion1* SIM Slot
LAN2*RJ45 Gigabit LAN port
Display1*VGA, 1*HDMI
Power1*12V DC IN Jack
Antenna2*WiFi/3G SMA antenna (Optional)
Audio1*Line-out, 1*MIC
PowerPower Adaptor12V/5A adaptor
ReliabilityOperating Temp.0℃~45℃
Storage Temp.-20℃~70℃
Relative Humidity5%-95%, no condensing
Vibration0.5g rms/5-500HZ/random/operating
Operate SystemSupport Windows7, Windows8, Windows10, Linux OS




Order Information

No.ModelProcessorMotherboardMemorySSDLANUSBWiFiAdaptorOS
1N2928SZJ1800/2.41GHzN29_18//2*RTL8111E4N/A12V/5A/
2N2929SZJ1900/2.00GHzN29_19//2*RTL8111E4N/A12V/5A/









FAQ:
1. Do you provide OEM/ODM service?
A: Yes,.We can support OEM/ODM service, the process of customization is following:
1) provide your specific requirement.
2) our design engineer draw the design draft.
3) you confirm the design draft.
4) we start produce it.



2. What is the Minimum Order Quantity (MOQ)?
A: We can sell one piece sample for your test.


3. What payment method do you use?
A: T/T,Western Union,PayPal.


4. What is the lead time of your product?
A: 3 days for sample, 15 working days for large quantity.



5. How does your factory do related quality control?
A: Quality is top priority. We firstly check the motherboard quality after manufacturing, secondly check the computer before storage in warehouse and thirdly check before shipping out.


6. What is the warranty time of your product?
A: 1 year warranty for non-artificial damage, for the 2nd to 3rd year we can repair it free, but will charge for the parts that needed to change.



7. Does your motherboard can keep working 24*7 hours?

Our low power consumption industrial boards have passed very strict tests, there is no problem to work 24*7 hours.


8. Are you a factory or trading company?

A: YANYUGONGKONG
MEMBER OF INTEL® INTELLIGENTSYSTEMS ALLIANCE, is a leading R&D and manufacturing technology-innovation enterprise specialized in Industrial Motherboards and embedded products industry.
Our products include: mini-itx motherboard,all-in-one motherboard, 3.5'' industrial motherboard, firewall motherboard, NVR&industrial motherboard, mini PC , HTPC, all-in-one PC, embedded PC, vehicle computers, cloud terminal, networking security, OPS mini PC, NAS server, etc.
Computer, OEM / ODM available.



9 If we come to China, can you arrange the visiting to your factory?
A: We warmly welcome and look forward to your visiting to our factory at any time.
