H3291Z Intel Celeron J1900 Fanless ITX Type HTPC Mini PC

FOB Reference Price:Get Latest Price
$69.00 - $169.00 / Pieces | 1 Piece/Pieces (Min. Order)
Memory Capacity:
8GB
Hard Drive Capacity:
60GB 120GB 250GB 500GB 1TB
Report Suspicious Activity
Overview
Quick Details
Products Status:
Stock
Type:
Desktop
Screen Size:
No Monitor
Processor Brand:
Intel
Graphics Card Type:
Integrated Card
Widescreen:
Yes
Processor Main Frequency:
2.0GHz
Brand Name:
YANYU GONGKONG
Model Number:
H3291Z
Place of Origin:
Guangdong, China (Mainland)
Processor:
Celeron 1037U J1800 J1900 3317U 3217U
LAN:
1*RJ45 LAN Port
USB:
6* USB2.0
Serial Port:
1* COM
Display:
1xVGA, 1xHDMI
WiFi:
1*Mini PCIE support WiFi 3G module
Audio:
1* Line-out, 1*MIC
Power Adaptor:
12V 5A
Name:
HTPC Mini PC
Dimensions(mm):
197mm*197mm*32mm (L*W*H)
Supply Ability
Supply Ability:
5000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Standard Export Packing
Port
Shenzhen
Lead Time :
2~3 days for sample, 15 working days for bulk order


Intel IoT Solution Alliance Affiliate Member
Intel Intelligent System Alliance Member
ISO9001:2008 Quality Management Certified,

ISO14001:2004 Environmental Management Certified

National High Tech Enterprice With Very Procssional R&D Team

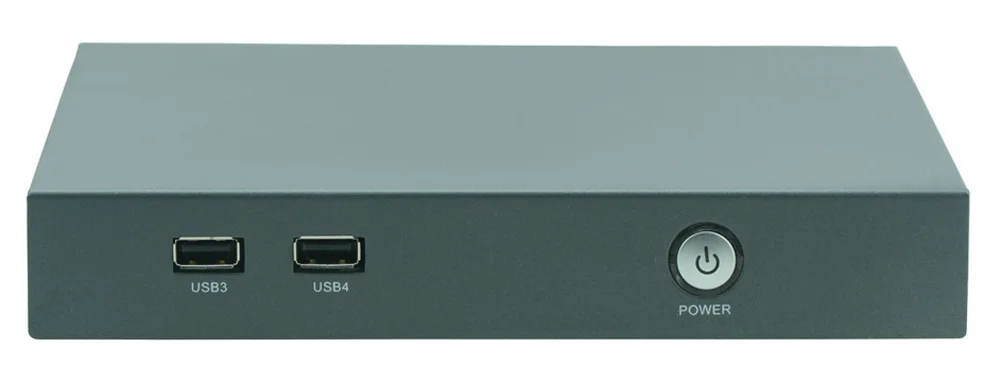

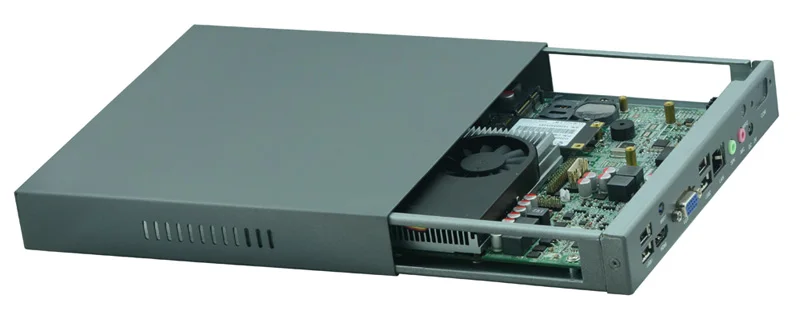

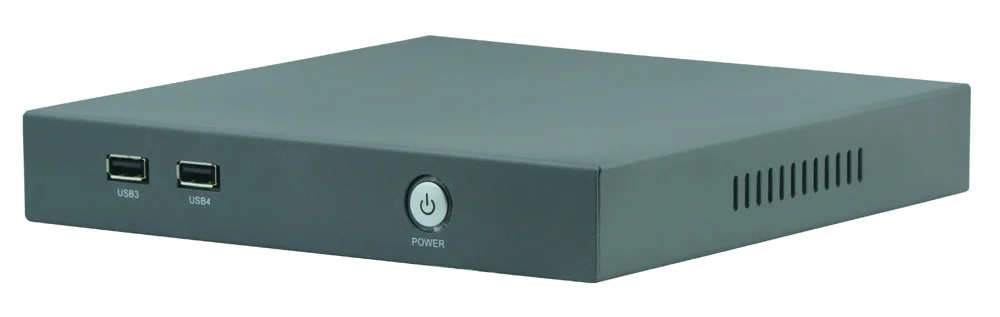

H3291Z Intel Celeron J1900 Fanless ITX Type HTPC Mini PC



Features
Intel® Celeron J1900 2.0GHz series processor
High quality galvanized chassis, compact structure, flexible installation
1*SIM card slot, support WIFI and 3G module
1* Intel Gigabit LAN, support Wake on LAN function

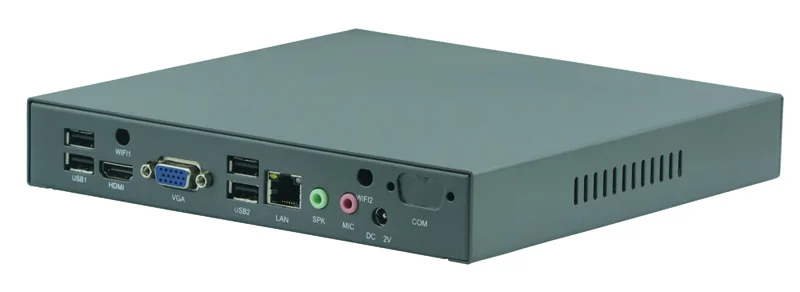

I/O port: 1x DC input, 1xCOM, 1xVGA, 1*HDMI, 1xLan, 1xAduio, 6xUSB, 1x power switch



Specification
ChassisColorLight silver black
Dimension197mm*197mm*32mm (L*W*H)
StructureFanless cooling structure
MaterialHigh quality galvanized steel sheet
InstallationDesktop type
MotherboardModelITX-M40_NL
ProcessorIntel Celeron® J1900/2.00GHz processor
GraphicsIntegrated Intel®HD Graphics
ChipsetBased on Intel® Baytrail SOC platform
StorageMemory1* 1600/1333MHz DDR3L/1.35V Memory, max up to 8GB
SATAsupport 1*2.5" HDD expansion
CFN/A
SSDsupport 1* MSATA SSD
Sound CardSound CardIntegrated ALC662 6 channels Hi-Fi audio controller, support MIC, Line_out
NetworkEthernet1* LAN(RTL8111E), support Wake on Lan, PEX function
WiFi1* Mini-PCIE slot, support WiFi, 3G module
System FeaturesUSB6* USB2.0
Power Switch1* power switch
Display1* VGA, 1*HDMI
NetworkSupport 1*RJ45 Gigabit LAN interface
Audio1* MIC, 1* Line-out
Serial Port1* COM (Optional)
Power1* DC12V power input interface
Antenna2*WiFi/3G SMA antenna (Optional)
Power AdaptorInputAC 110V ~220V
OutputDC 12V 5A
ReliabilityOperating Temp.0℃~45℃
Storage Temp.-20℃~70℃
Relative Humidity5%-95%, no condensing
Vibration0.5g rms/5-500HZ/random/operating
Operate SystemSupport Windows7, Windows8.1, Windows10, Linux OS






Order Information

No.ModelProcessorMotherboardMemorySSDLANUSBFront AudioWIFIAdaptorOS
1H3211Z1037U/1.80GHzM19-N2//1*RTL8111E6N/AN/A12V/5A/
2H3231Z3217U/1.80GHzM100_i3//1*RTL8111E6N/AN/A12V/5A/
3H3281ZJ1800/2.41GHzM50_N18//1*RTL8111E6N/AN/A12V/3A/
4H3291ZJ1900/2.00GHzM40_NL//1*RTL8111E6N/AN/A12V/3A/
5H3251Z3317U/1.70GHzM19_i5//1*RTL8111E6N/AN/A12V/3A/





FAQ:
1. Do you provide OEM/ODM service?
A: Yes,.We can support OEM/ODM service, the process of customization is following:
1) provide your specific requirement.
2) our design engineer draw the design draft.
3) you confirm the design draft.
4) we start produce it.



2. What is the Minimum Order Quantity (MOQ)?
A: We can sell one piece sample for your test.


3. What payment method do you use?
A: T/T,Western Union,PayPal.


4. What is the lead time of your product?
A: 3 days for sample, 15 working days for large quantity.



5. How does your factory do related quality control?
A: Quality is top priority. We firstly check the motherboard quality after manufacturing, secondly check the computer before storage in warehouse and thirdly check before shipping out.


6. What is the warranty time of your product?
A: 1 year warranty for non-artificial damage, for the 2nd to 3rd year we can repair it free, but will charge for the parts that needed to change.



7. Does your motherboard can keep working 24*7 hours?

Our low power consumption industrial boards have passed very strict tests, there is no problem to work 24*7 hours.


8. Are you a factory or trading company?

A: YANYUGONGKONG
MEMBER OF INTEL® INTELLIGENTSYSTEMS ALLIANCE, is a leading R&D and manufacturing technology-innovation enterprise specialized in Industrial Motherboards and embedded products industry.
Our products include: mini-itx motherboard,all-in-one motherboard, 3.5'' industrial motherboard, firewall motherboard, NVR&industrial motherboard, mini PC , HTPC, all-in-one PC, embedded PC, vehicle computers, cloud terminal, networking security, OPS mini PC, NAS server, etc.
Computer, OEM / ODM available.



9 If we come to China, can you arrange the visiting to your factory?
A: We warmly welcome and look forward to your visiting to our factory at any time.
